SCH5s-SCH160s Stainless Steel 90 Degree Elbow Perfect For Butt Welded Connections In Food Beverage Industry

  • 1
  • 2

Brand Name : YUHAO

Model Number : Butt Weld Pipe Fittings

Certification : ASTM, AISI, GB, DIN, JIS

Place of Origin : China

MOQ : 100kgs

Price : Negotiation

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 2000tons/per month

Delivery Time : 15days

Packaging Details : Standard sea worth bundles,Standard Plywood cases

wall thickness : SCH5s-SCH160s

customized support : OEM, ODM, OBM

shape : Elbow

surface treatment : Mirror, Polishing, Sandblasting, Sand Rolled

Connection Type : Butt Welded

Application : Oil, Gas, Chemical, Petrochemical, Power, Food & Beverage Industry

Size : DN6-DN700

Standard : EN, ASTM, AISI, DIN, JIS

Grade : 304, 304L, 316, 316L, 321, 310s

Contact Now

SCH5s-SCH160s Stainless Steel Elbow BW Pipe Fitttings 90 Degree Elbow


►Products description

Engineered for high-performance industrial use, these 304 stainless steel elbows deliver superior corrosion resistance, durability, and flow efficiency. Designed to endure high-pressure and high-temperature conditions, they are ideal for chemical, petrochemical, and oil & gas applications.

The long-radius geometry ensures smooth flow transition, reducing pressure drop and turbulence. The socket weld connection offers a secure, leak-proof joint, while the 90-degree bend enables efficient flow direction changes. Precision-manufactured to industry standards, these elbows ensure seamless integration, reliability, and long-term performance in demanding piping systems.

►Product Size


Norminal dimeter
Outside diante		 Center to end
Center to Conter		 kg／pc
90°L/R Elbow Approx weight
DN NPS OD B A O sch5s sch10S sch20S/LG sch40S/STD sch80S/XS sch80
15 1/2 18
21.3		 16 38 76 0.04
0.05		 0.05
0.06		 0.06
0.07		 0.06
0.08		 0.08
0.10		 0.08
0.10
20 1/4 25
26.7		 19 38 76 0.06
0.06		 0.07
0.08		 0.09
0.09		 0.09
0.10		 0.12
0.13		 0.12
0.13
25 1 32
33.4		 22 38 76 0.07
0.08		 0.12
0.13		 0.14
0.14		 0.14
0.15		 0.19
0.19		 0.19
0.19
32 1 1/4 38
42.2		 25 48 96 0.11
0.13		 0.18
0.20		 0.21
0.23		 0.23
0.26		 0.30
0.34		 0.30
0.34
40 1 1/2 45
48.3		 29 57 114 0.16
0.17		 0.26
0.28		 0.30
0.32		 0.34
0.37		 0.45
0.49		 0.45
0.49
50 2 57
60.3		 35 76 152 0.27
0.29		 0.45
0.47		 0.57
0.61		 0.62
0.65		 0.85
0.90		 0.85
0.90
65 2 1/2 76
73		 44 95 190 0.58
0.55		 0.82
0.79		 0.97
0.93		 1.35
1.30		 1.79
1.71		 1.79
I.7I
80 3 89 51 114 228 0.82 1.17 1.51 2.04 2.76 2.76
90 3 1/2 101.6 57 133 266 1.09 1.56 2.03 2.85 3.92 3.92
100 4 108
114		 64 152 304 1.32
1.40		 1.90
2.01		 2.47
2.61		 3.64
3.85		 5.05
5.35		 5.05
5.35
125 5 133
141.3
139.7		 79 190 380 2.67
2.84
2.81		 3.27
3.47
3.43		 4.74
5.05
4.99		 6.14
6.54
6.46		 8.72
9.31
9.19		 8.72
9.31
9.19
150 6 168.3
159
165		 95 229 458 4.10
3.86
4.01		 5.01
4.72
4.91		 7.29
6.88
7.14		 10.24
9.64
10.03		 15.41
14.50
15.09		 15.41
14.50
15.09
200 8 219
216		 127 305 610 7.12
7.03		 9.63
9.49		 15.94
15.71		 20.51
20.22		 31.17
30.71		 31.17
30.71
250 10 273
267.4		 159 381 762 13.62
13.34		 16.74
16.39		 24.97
24.44		 36.33
35.56		 49.12
48.06		 57.83
56.57
300 12 325
323.9
318		 190 457 914 22.66
22.58
22.16		 26.10
26.01
25.53		 35.79
35.66
35.00		 53.58
53.40
52.39		 70.69
70.44
49.11		 95.81
95.46
93.63
350 14 377
355.6		 222 533 1066 30.71
28.95		 36.98
34.86		 61.36
57.80		 72.80
68.56		 96.17
90.52		 141.75
133.27
400 16 426
406.4		 254 610 1220 42.05
40.09		 47.90
45.67		 79.55
75.82		 94.42
89.98		 124.87
118.95		 206.35
196.35
450 18 478
457.2		 286 686 1372 53.11
50.78		 60.52
57.86		 100.60
96.14		 199.44
114.14		 158.10
151.03		 296.35
276.29
500 20 529
508		 318 762 1524 74.47
71.48		 86.18
82.72		 123.86
118.87		 147.12
141.14		 194.86
186.94		 391.34
375.00
550 22 559 343 838 1676 86.58 100.21 144.06 171.14 226.75 495.44
600 24 630
610		 381 914 1828 123.32
119.37		 141.21
136.64		 177.37
171.67		 210.78
203.98		 279.45
270.40		 661.10
-
650 26 660 406 991 1982 -- - 201.59 239.58 317.72 -
700 28 720
711		 438 1067 2134 - - 237.03
234.03		 281.75
278.18		 373.80
369.04		 -
750 30 762 470 1143 2286 213.9 266.23 268.89 319.66 424.2 -
800 32 820
813		 502 1219 2438 - - 308.83
306.16		 367.20
364.02		 487.42
483.20		 -
850 34 864 533 1295 2590 - - 345.86 411.27 546.04 -
900 36 920
914		 565 1372 2744 - - 390.39
387.83		 464.28
461.22		 616.56
612.48		 -
950 38 965 600 1448 2896 - - 432.25 514.21 682.98 -
1000 40 1016
2020		 632 1524 3048 - - 479.29
481.19		 570.09
572.35		 757.33
760.35		 -
1050 42 1067 660 1600 3200 - - 528.65 628.85 835.51 -
1100 44 1118
1120		 695 1676 3352 - - 580.43
581.48		 690.49
691.73		 917.53
919.19		 -
1150 46 1168 727 1753 3506 - - 634.45 754.79 1003.1 -
1200 48 1220 759 1829 3658 - - 691.63 822.85 1093.7 -

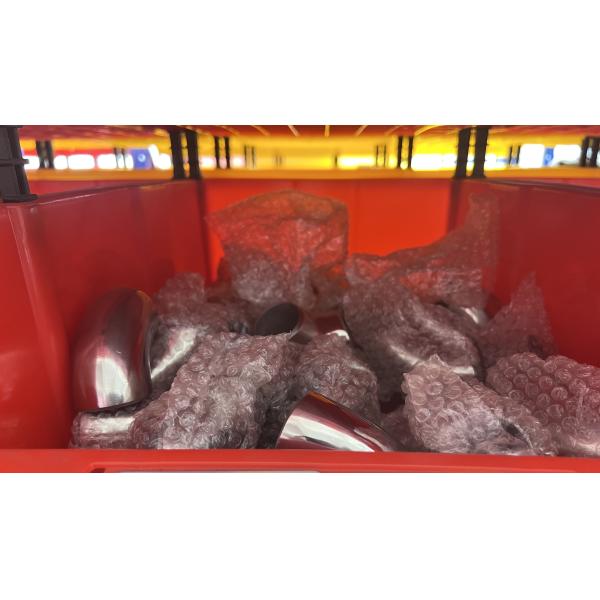

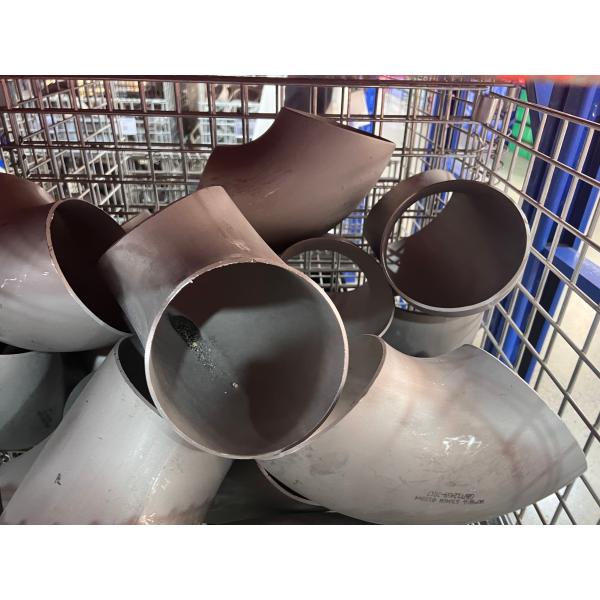

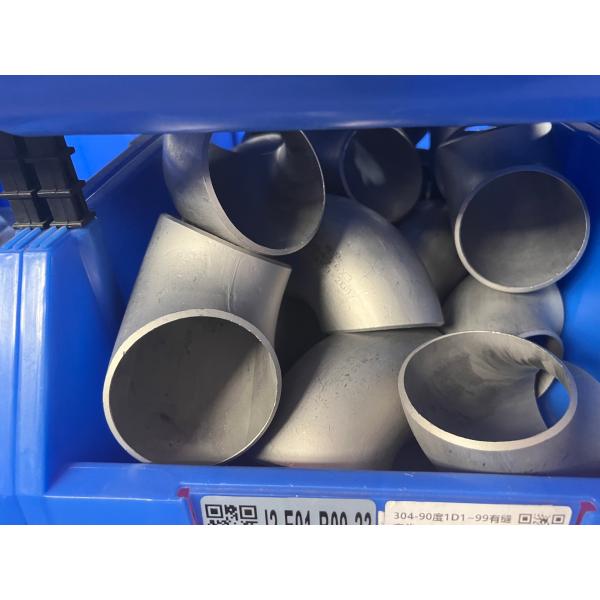

►Factroy Shoot

SCH5s-SCH160s Stainless Steel 90 Degree Elbow Perfect For Butt Welded Connections In Food Beverage Industry

SCH5s-SCH160s Stainless Steel 90 Degree Elbow Perfect For Butt Welded Connections In Food Beverage IndustrySCH5s-SCH160s Stainless Steel 90 Degree Elbow Perfect For Butt Welded Connections In Food Beverage Industry

►FAQ

Q1: Delivery time?

A: 1- 7 days for small order.10- 20 days for big order.

Q2: What about your delivery time if we placed order?

A: We have large of ready stock,in general we can delivery within 2-10days.

Q3: Which payment terms you can accept?

A: We can accept TT,LC,DP,DA,Western Union or Negotiation.

Q4: Can you provide the free samples?

A: We can supply the free samples but the sample express freight need paid by yourside.

Q5: What is your minimum order quantity?

A: The MOQ for each product is different, so it would be recommended to refer to the detail page of the product you are interested in. If you need further clarification, send me the product link, and I will reply as soon as possible.
